Designed for consistent performance on your ESD containers

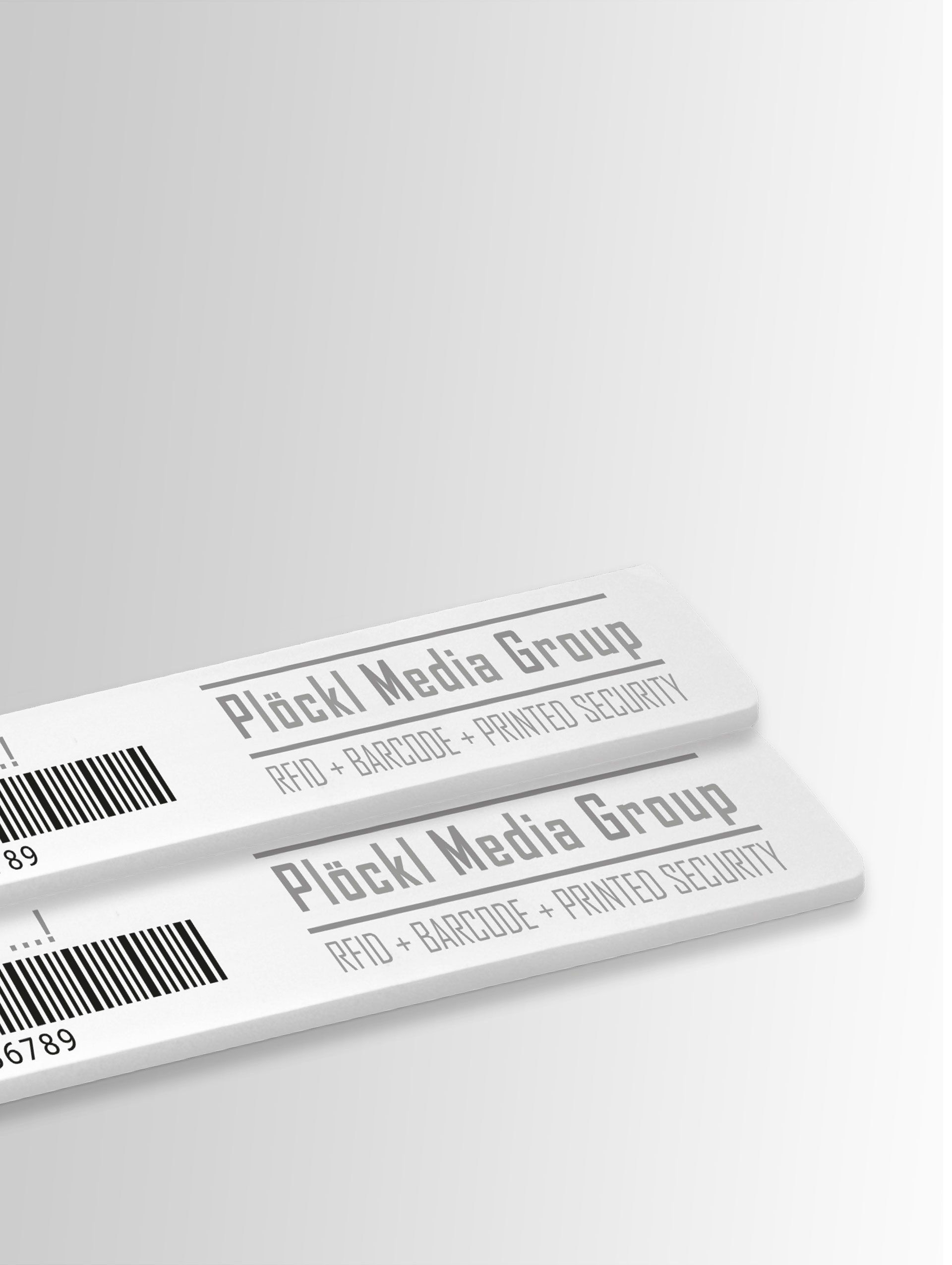

The focus of the ESD Perform RFID Label is clearly on achieving maximum homogeneity in high-frequency behavior. This applies even to dielectrically different substrates and can be designed for a range of up to 5m to reliably accommodate Kanban applications. The PMG ESD Perform RFID Tag is developed for consistent performance on ESD containers and, due to its small size, is suitable for use even in hard-to-reach areas.
With UHF RFID passive technology, there is no risk of battery fatigue or deterioration in cold temperatures. The PMG ESD Perform RFID Label is delivered on a roll and can be programmed and printed with thermal transfer printers. Optionally, the PMG ESD Perform RFID Tag can also be delivered pre-printed in full color and ready-coded. In this variant, additional equipment with a protective laminate is also possible.
A modified acrylic adhesive is used on standard backing paper, providing good adhesion to various substrates. The adhesive is suitable for low- and high-energy materials. The substrate must be clean, dry, oil-free, and grease-free when applied.
Here are the benefits of our PMG ESD Perform RFID Labels summarized
- Consistent Performance / Maximum Results
- Customizable Printing
- Specifically designed for ESD containers and anti-static processes
- Ready serialized and printed, or suitable for self-printing
- The PMG ESD Perform RFID label was developed with a permanent high-performance adhesive and a spacer of 0.08 inch / 2 mm to offer consistent performance on ESD containers and in anti-static application
- It offers homogeneous high-frequency behavior on a variety of substrates
- Due to its small size, it is also suitable for use in poorly accessible areas
- Ranges of approximately up to 16ft / 5m possible (at 2W ERP reader output)
- The use of UHF-RFID passive technology means that there is no risk of the battery power deteriorating or being completely lost during low temperatures
- The label is supplied on reels and can be programmed and printed with thermo-transfer printers
Size - individual sizes on request
| 4.01x0.86 inch |
|---|
| 102x22 mm |
Industry sectors:
aviation and aeronautics, automotive, logistics, construction, chemical, defense industry, engineering, railway vehicle manufacturing, shipbuilding
